Low Voltage Cables

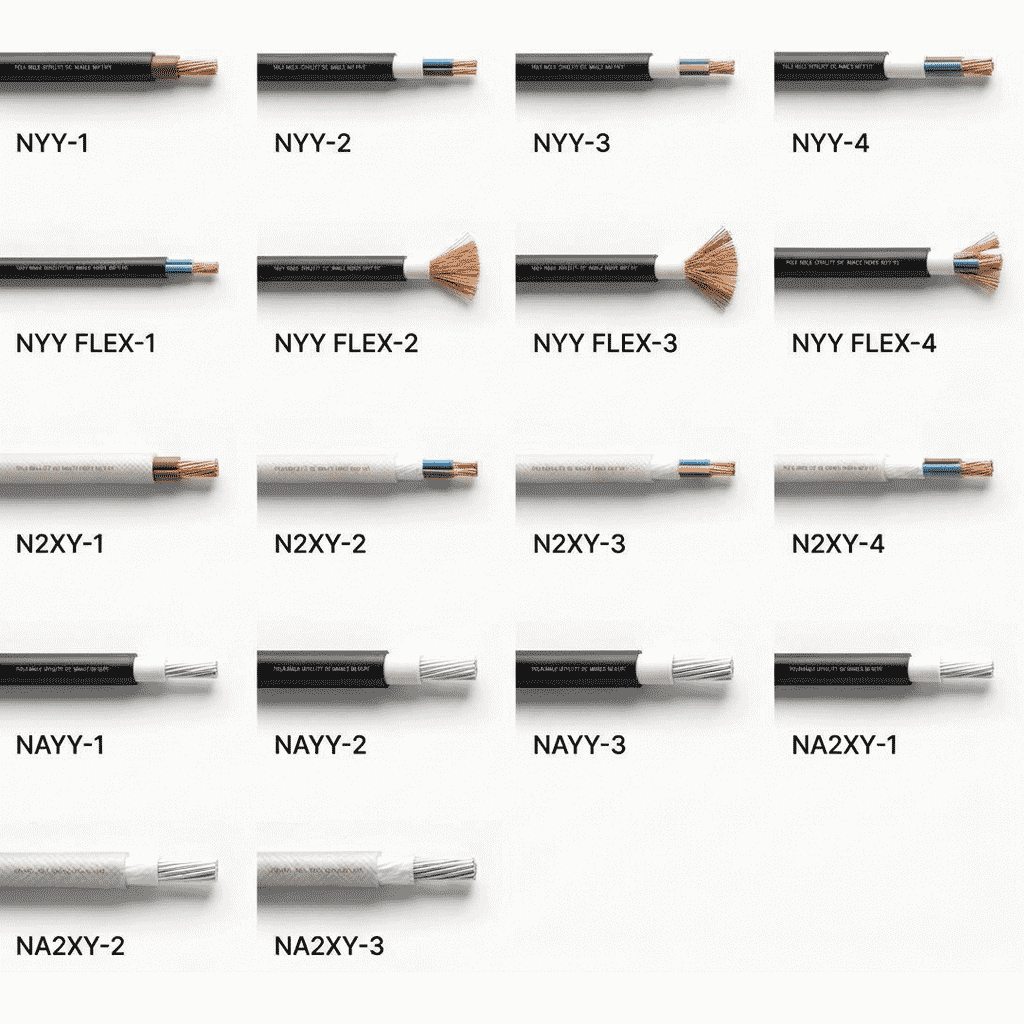

PEX teams up with cable factory solution partners to supply durable Low Voltage Power Cables, including standard unarmored YVV / NYY, flexible YVV-K / NYY FLEX, high-thermal YXV / N2XY, and lightweight aluminum YVV-A / NAYY variations. Engineered under the rigorous global standard TS IEC 60502-1 and VDE 0276, these heavy-duty 0.6/1 kV cables are equipped with specialized conductor structures—ranging from Class 1 rigid solid copper/aluminum to Class 2 stranded and Class 5 flexible fine-wired cores—designed to handle stable power distribution in demanding setups.



Core Product Specifications & Applications

  • Cable Types Covered:

    • YVV / NYY: Standard PVC insulated, PVC sheathed power cables.

    • YVV-K / NYY FLEX: Highly pliable, flexible PVC power cables.

    • YXV / N2XY: Cross-linked polyethylene (XLPE) insulated, high-temperature cables.

    • YVV-A / NAYY / YXV-A: Standard aluminum conductor power options.

  • Copper / Aluminum Conductor Classes:

    • Class 1 & Class 2 (Rigid solid or multi-wire stranded conductors for fixed infrastructure).

    • Class 5 (Fine-wire stranded flexible conductors specifically for the NYY FLEX variants).

  • Related Standard: TS IEC 60502-1 & VDE 0276 (Standard for power cables with extruded insulation for rated voltages from 1 kV up to 3 kV).

  • Areas of Application:

    • Underground Energy Networks: Installed mainly as local energy supply lines in urban utility distribution networks and power plants (YVV / YVV-A).

    • Industrial & Grid Facilities: Ideal for industrial zones and commercial hubs with sudden load fluctuations owing to higher thermal limits up to 90°C (YXV / N2XY).

    • Confined Channels & Cable Ducts: Utilized inside cable paths, indoor switchboards, and brickworks where flexible routing around structural bends is mandatory (YVV-K Flex).


Low Voltage Cables

PEX works with cable factory solution partners to supply eco-friendly halogen-free cables like the H05Z, H07Z, and NHXMH series. This partnership ensures highly safe, low-smoke wiring reaches public and industrial construction projects worldwide.



Areas of Application

Halogen-free cables are critical in environments where public safety and protection of sensitive equipment are top priorities:

  • Public Buildings: Airports, train stations, hospitals, schools, and shopping malls where high concentrations of people require safe evacuation routes.

  • Infrastructure: Underground tunnels, metro systems, and data centers where smoke can block visibility or trap toxic fumes.

  • Industrial Facilities: Power plants and manufacturing hubs to protect expensive electronics from corrosive gases during a fire.


Building Wires

PEX teams up with cable factory solution partners to supply high-quality Flexible Cables including the H03VV-F, H05VV-F, flat H03VVH2-F / H05VVH2-F, and speaker/flat twin H03VH-H / A05VH-H series. Designed under the harmonized European standard EN 50525-2-11, these versatile cables feature Class 5 fine-stranded copper conductors that offer exceptional pliability for dynamic environments.



Core Product Specifications & Applications

  • Cable Types: H03VV-F, H05VV-F, H03VVH2-F, H05VVH2-F, H03VH-H, A05VH-H

  • Copper Conductor Class: Class 5 (highly flexible, fine-wire stranded copper according to IEC 60228 / EN 60228)

  • Related Standard: EN 50525-2-11 (for PVC insulated flexible cables)

  • Areas of Application:

    • Household Appliances: Connecting domestic devices like washing machines, refrigerators, and spin dryers (H05VV-F).

    • Portable Office Equipment: Powering light-duty indoor electronics such as computers, office machinery, and table lamps (H03VV-F / H03VVH2-F).

    • Audio & Consumer Electronics: Wiring internal speaker systems, audio components, and small radio equipment (H03VH-H).


Aerial Bundled Cables

PEX teams up with cable factory solution partners to supply high-performance overhead conductors, including insulated AER, ABC, and ABC-NFA2X overhead bundles alongside bare aluminum AAC-1, AAC-2, and ACSR transmission lines. Designed under strict international benchmarks like IEC 61089, BS 215, and local utility distribution standards, these heavy-duty cables feature Class 1 and Class 2 stranded aluminum and steel-reinforced cores optimized for high tensile strength, minimal structural sag, and weather resistance across outdoor grids.



Core Product Specifications & Applications

  • Cable Types Covered:

    • AER / ABC / ABC-NFA2X: Cross-linked polyethylene (XLPE) insulated Aerial Bundled Cables for overhead low-voltage distribution.

    • AAC (All Aluminum Conductor): Bare concentric-lay-stranded aluminum wires.

    • ACSR (Aluminum Conductor Steel Reinforced): High-capacity, high-strength bare conductors with a central galvanized steel core surrounded by aluminum outer strands.

  • Conductor Material & Stranding Class: Class 2 rigid stranded conductors utilizing hard-drawn aluminum wires for optimal tensile performance and reinforced steel cores for heavy physical loads.

  • Related Standard: IEC 61089, EN 50397, and BS 215 (Standards governing overhead electrical conductors and insulated aerial bundled cables).

  • Areas of Application:

    • Overhead Rural & Urban Grids: Used for local secondary power distribution on utility poles where installing underground infrastructure is too costly or structurally restricted (ABC / AER).

    • High-Voltage Transmission Lines: Deployed over vast distances between transmission towers, crossing rivers or valleys where exceptional tensile strength is mandatory to withstand wind and ice loading (ACSR).

    • Coastal and Corrosive Zones: Selected for shorter spans in power stations or coastal distribution setups requiring light weight and high corrosion resistance (AAC).
